THS8135PHP
Manufacturer:
Texas Instruments
Mfr.Part #:
THS8135PHP
Datasheet:
Description:

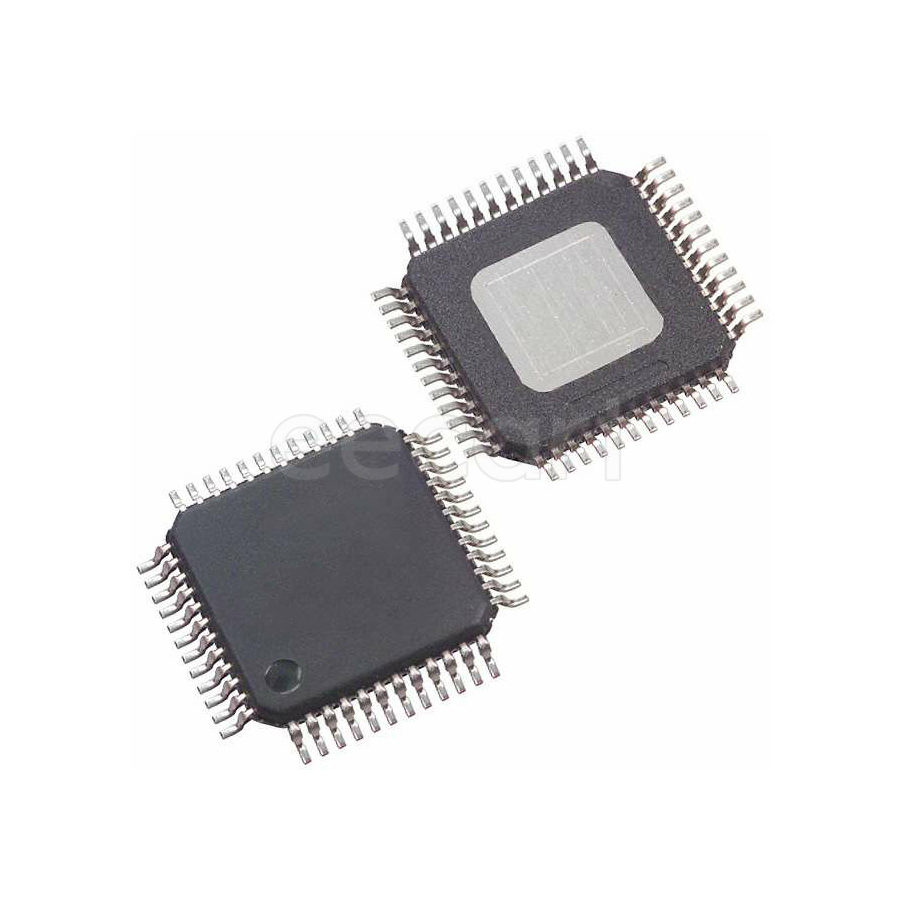

Digital to Analog Converters (DACs) HTQFP-48 SMD/SMT number of channels:3 number of bits:10 Number of D/A Converters:3
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Width | 7 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 48 |
| Height | 0 mm |
| Thickness | 1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | Parallel |
| Operating Supply Voltage | 3.3 V |
| Output Type | Voltage |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 3 |
| Number of Bits | 10 |
| Supply Type | Analog, Digital |
| Number of DAC Channels | 3 |
| Number of Outputs | 3 |
| Sampling Rate | 240 Msps |
| Integral Nonlinearity (INL) | 1.5 LSB |
| Number of Converters | 3 |
| Settling Time | 15 ns |
| Resolution | 1.25 B |
| Conversion Rate | 240 Msps |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| RoHS | Compliant |
| Packaging | Reel |
| Reference Type | Internal |
| Interface Type(Data Interface) | Parallel |
| Core Architecture(core/core processor) | Current Steering |
| Number of D/A Converters | 3 |
Stock: 182
Distributors
pcbx
pcbxUnit Price$6.40855
Ext.Price$6.40855
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.40855 | $6.40855 |
| 10 | $4.98766 | $49.87660 |
| 25 | $4.63116 | $115.77900 |
| 50 | $4.43283 | $221.64150 |
| 100 | $4.24301 | $424.30100 |
| 300 | $4.09020 | $1227.06000 |
| 500 | $3.94293 | $1971.46500 |
| 1000 | $3.84890 | $3848.90000 |
